Job Specification:
Project: Motorcycle Engine Component
Material: Aluminum 6061-T6
Processes Involved: 4-Axis CNC Machining, EDM
Split or Not: No
Finishing: Hand Polishing
Quantity: 5 Pcs
Lead Time: 7 Working Days
Tolerance Requirement：General ± 0.005’’ ;
Partial ±0.001’’
Design For Manufacturing Review And Recommendations

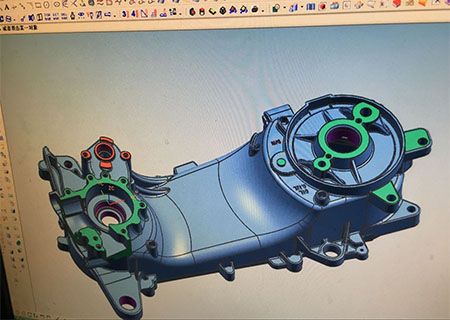

Once our engineers received the product design for this Motorcycle Engine Component they completed a design for
manufacturing review. The technical team found that there were a few areas that needed special attention to maximize the part’s appearance and functionality. With customer’s discussion and permission, our colleague finished the final process flow plan.
How
The Parts Were Made:
We chose Aluminum 6061-T6 for the parts. This is a commonly available aluminum alloy that machines well, is not too expensive and looks great after polishing.

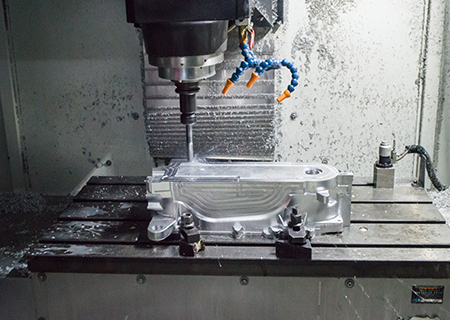

With the need for such tolerances (Partial ±0.001’’) we decided to machine these parts on our 4-axis CNC mill. Having such equipment helps to avoid moving the piece from one holding fixture to another on different machines, which makes it tough to hold tight tolerances. Also, internal EDM was used to route the profile of the case.

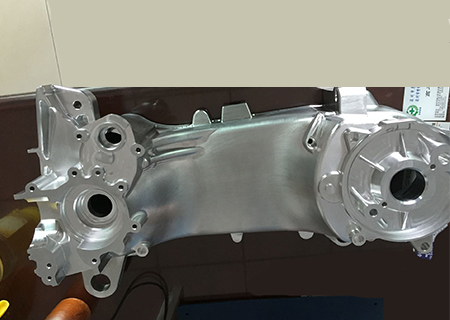

After milling there were some fine machine marks and scratches on the metal. To remove these and get a good appearance, we applied hand polishing on these external surfaces.
